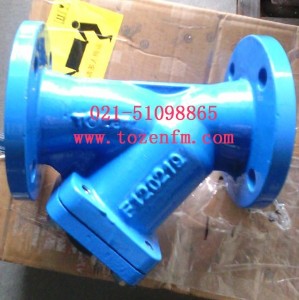

tozen滔辰cys-b法蘭y型過濾器介紹：cast iron y type strainer

鑄鐵y型過濾器

specification 規格

bolted cover with blow-off drain plug

stainless steel perforated screen

flanged to bs 4504 pn16

濾網蓋含排污口

不銹鋼濾網

法蘭規格符合bs 4504 pn16

pressure / temperature ratings 壓力/溫度等級

working pressure 工作壓力

16 bar

testing pressure 測試壓力

24 bar

working temperature 工作溫度

-10˚c to 120˚c

suitable media 介質

water, oil & gas 水/油/氣體

materials 材質表

part 部件

material 材質

bs 英標

body 閥體

cast iron 灰鑄鐵

a126 class b

cover 閥蓋

cast iron 灰鑄鐵

a536 65-45-12

screen 濾網

stainless steel 不銹鋼

s30400

blow-of plug 排污連接口

carbon steel 碳鋼

standard screens 濾網標準

size [mm]

hole dia. [mm]

free flow area [inch 2]

50 ~ 150

1.5

104

200 ~ 350

2.5

26

400 ~ 600

3.5

22

dimensions 口徑尺寸

size

[mm]

l

[mm]

h

[mm]

plug size

[mm]

weight

[mm]

5023016025136529018025178031021525241003502354040125400275404215048030540632006003905014225073054050265300850680504133509807405049040011008455063545012008405070050012509325078560014501078501177

note:

1. jis b2239 10k, astm class125,【敏感詞】other fange standards available upon request.

2. if used for gas application, please consult our sales ofce.

3. design【敏感詞】specifcations are subject to change without prior notice.

備注 :

1. 可提供jis b2239 10k，astm class125 及其他法蘭連接標準的產品。

2. 如應用于氣體，請聯系我司確認。

3. 設計和規格如有修改，恕不另行事先通知。
