deｓｃｒｉｐｔion:描述

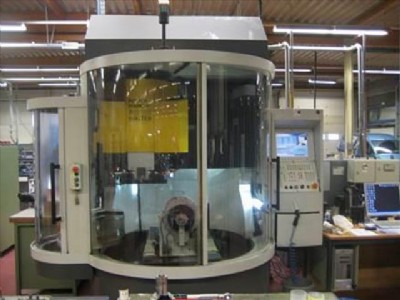

made by walter德國瓦爾特制造, model 型號helitronic power diamond, serial no. 編號510027, year出廠日期 2003年, 控制系統control walter hmc 600

suitable for manufacturing【敏感詞】regrinding of pcd tools for the wood-【敏感詞】metalworking industry【敏感詞】for manufacturing【敏感詞】regrinding of wood-【敏感詞】metalworking tools.適合木工和金屬加工工廠的pcd刀具的生產與修磨，適合生產及修磨各種木工及金屬加工刀具。

specifications:規格

control hmc 500 xp控制系統; working range工作范圍: longitudinal traverse縱向行程 (x-axis) 470 mm, vertical traverse 垂直行程(y-axis) 320 mm, cross traverse 交叉行程(z-axis) 660 mm, rotary table swivelling range回轉角度 (c-axis) +/- 200°, work head spindle工件座規格 iso 50, centre height (with / without worktable) 中心高度（有/無工作臺）145 / 190 mm, max. diameter of workpiece最大工件直徑 320 mm, max length of workpiece peripheral grinding 最大磨削工件周邊長度350 mm, max workpiece length face grinding 最大工件端面磨削長度280 mm, peak performance 磨削軸峰值功率11,5 kw, grinding wheel speed 磨削軸速度范圍0 – 9.500 rpm,  connected load 裝機容量約25 kw (400 v / 50 hz), grinding spindle speed 磨削軸速度范圍0 - 9500 rpm., weight ca. 重量約4600 kg, dimensions體積 w x d x h = 2850 x 2930 x 2273 mm, colour 顏色灰色/白色grey /white.

accessories配件：前期

discloader for up to 40 workpieces,最多可以裝載40個工件

hollowshaft motor,中空電主軸

software helitronic tool studio 2.0 standard license,標準版

software helitronic tool studio 2.0 advanced license,領先版

software option step tools,階梯

software option profile light (contour roughing…輪廓粗加工),

software option drills鉆頭,

software option network網絡,

software package 1 (cylindrical cutters圓柱刀具),

software package 2 (tapered helical cutters圓錐螺旋銑刀),

software package 3 (drills, step drills鉆頭和階梯鉆),

software package 6 (woodworking tools木工刀具),

software package 7 (profile tools配置工具),

software package 16 (warm up program熱機程序),

software package 17 (cylindrical grinding圓柱修磨),

software package 18 (dressing修整砂輪),

software package 27 (free programming免費編程),

software package 51【敏感詞】52 (rotary eroding 電腐蝕軟件),

software package 53 (cylindrical erosion圓柱腐蝕),

software heliflute & cone開槽軟件

probe,探針

mist extractor油霧分離器,

stepless adjustable grinding spindle speed,步進速度控制

automatic central lubrication,自動中央潤滑

automatic fire extinguishing system,自動滅火系統

oil collecting pan,集油盤

coolant system 400 l.冷卻系統

2 grinding wheel flanges,2根砂輪桿
